Gomera TT
From the most demanding climbs to technical descents, this bike is designed for those who want to dominate the mountains. Ultra-light, responsive, and precise, it turns every climb into pure power and control. Every gram is optimized to transform power into speed, every detail engineered to make you fly toward your next KOM.
Sizes
XXS
XS
S
M
L
XL
| | GOMERA TT - SRAM RIVAL AXS |
| FRAME | GOMERA TT, 12×142mm thru axle |
| FORK | GOMERA TT, 12×100mm thru axle |
| LEVERS | Sram Rival Aero AXS E1 |
| REAR DERAILLEUR | Sram Rival AXS E1 |

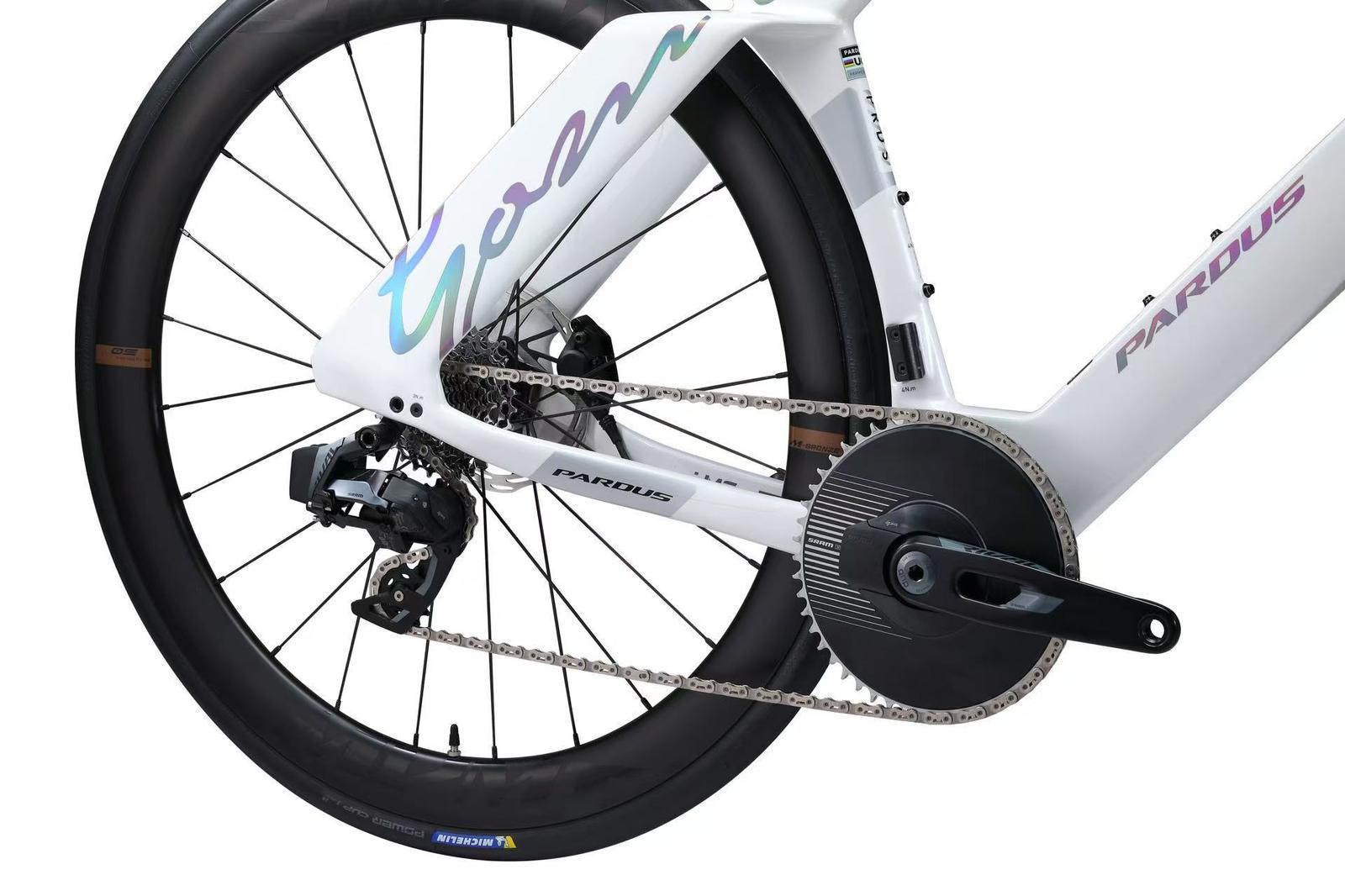

| CRANKSET | Sram Rival AXS Power Meter |
| CASSETTE | Sram Rival 10-30T |
| CHAIN | Sram Rival E1 |
| BRAKES | Sram Rival Aero AXS E1 |
| ROTORS | Sram |
| FRONT WHEEL | MVMT Bronze50, H50C23, 12x100mm axle |
| REAR WHEEL | MVMT Bronze50, H50C23, 12x142mm axle |
| TIRES | Michelin PowerCup TLR 700x28 |

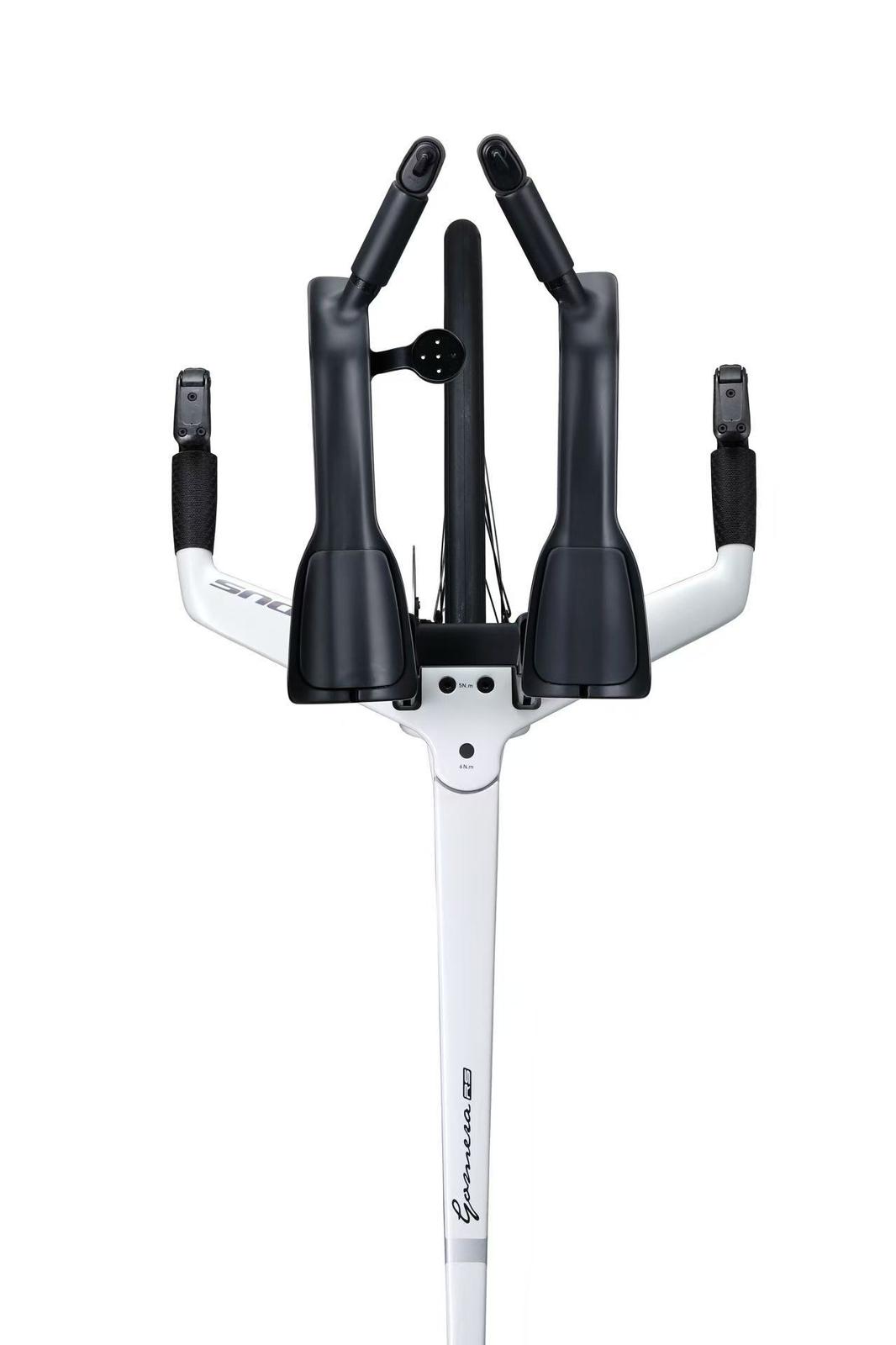

| HANDLEBAR | MVMT M-SILVER B-TYPE Carbon, Basebar and aerodynamic extension |
| SEATPOST | Carbon, 0 offset |
| SADDLE | Selle Italia WATT |

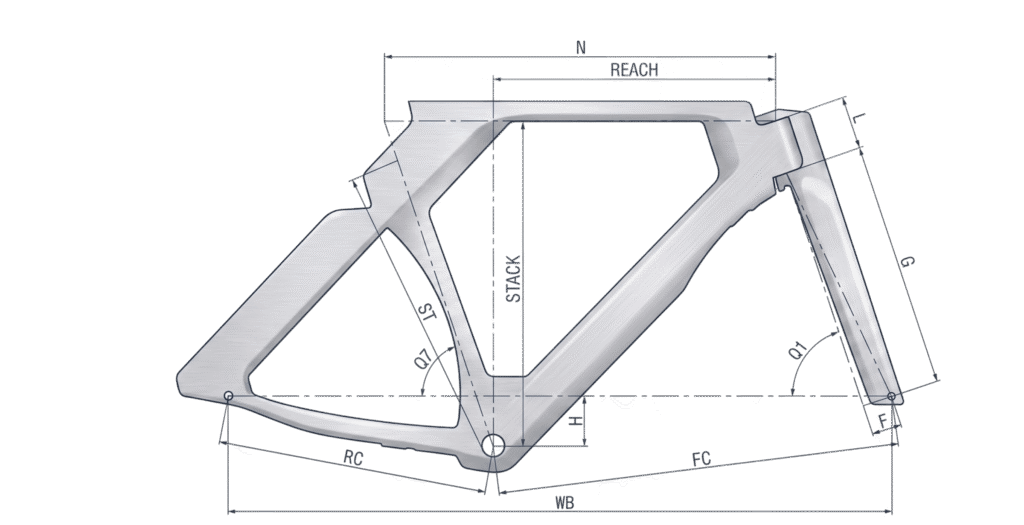

| | SIZE | XXS | XS | S | M | L | XL |
| Stand over height | 760 | 768 | 779 | 789 | 799 | 809 | |
| Reach | 368 | 376 | 399 | 418 | 434 | 444 | |
| Stack | 444 | 465 | 476 | 486 | 496 | 506 | |
| Effective stack (Lowest position) | 552 | 563 | 574 | 584 | 594 | 604 | |
| Effective stack (Highest position) | 632 | 653 | 664 | 674 | 684 | 694 | |
| Effective reach (Forward position) | 457 | 465 | 488 | 506 | 523 | 533 | |
| Effective reach (Rearward position) | 405 | 413 | 436 | 454 | 471 | 481 | |
| Trail | 66,1 | 63,1 | 63,1 | 63,1 | 63,1 | 63,1 | |
| N | Top tube length | 462 | 475 | 501 | 521 | 540 | 552 |
| Q1 | Head tube angle | 71,5 | 72° | 72° | 72° | 72° | 72° |
| Q7 | Seat tube angle | 78 | 78° | 78° | 78° | 78° | 78° |
| WB | Wheelbase | 944 | 949 | 975 | 996 | 1016 | 1029 |
| RC | Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| FC | Front center | 547 | 556 | 582 | 603 | 623 | 636 |
| H | BB drop | 60 | 75 | 75 | 75 | 75 | 75 |
| L | Head tube length | 51 | 56 | 68 | 78 | 89 | 99 |
| F | Fork offset | 44,8 | 44,8 | 44,8 | 44,8 | 44,8 | 44,8 |
| G | Fork length | 367 | 367 | 367 | 367 | 367 | 367 |
| Handlebar width | 400 | 400 | 400 | 400 | 400 | 400 | |
| Crank length | 165 | 165 | 170 | 170 | 172,5 | 172,5 |
