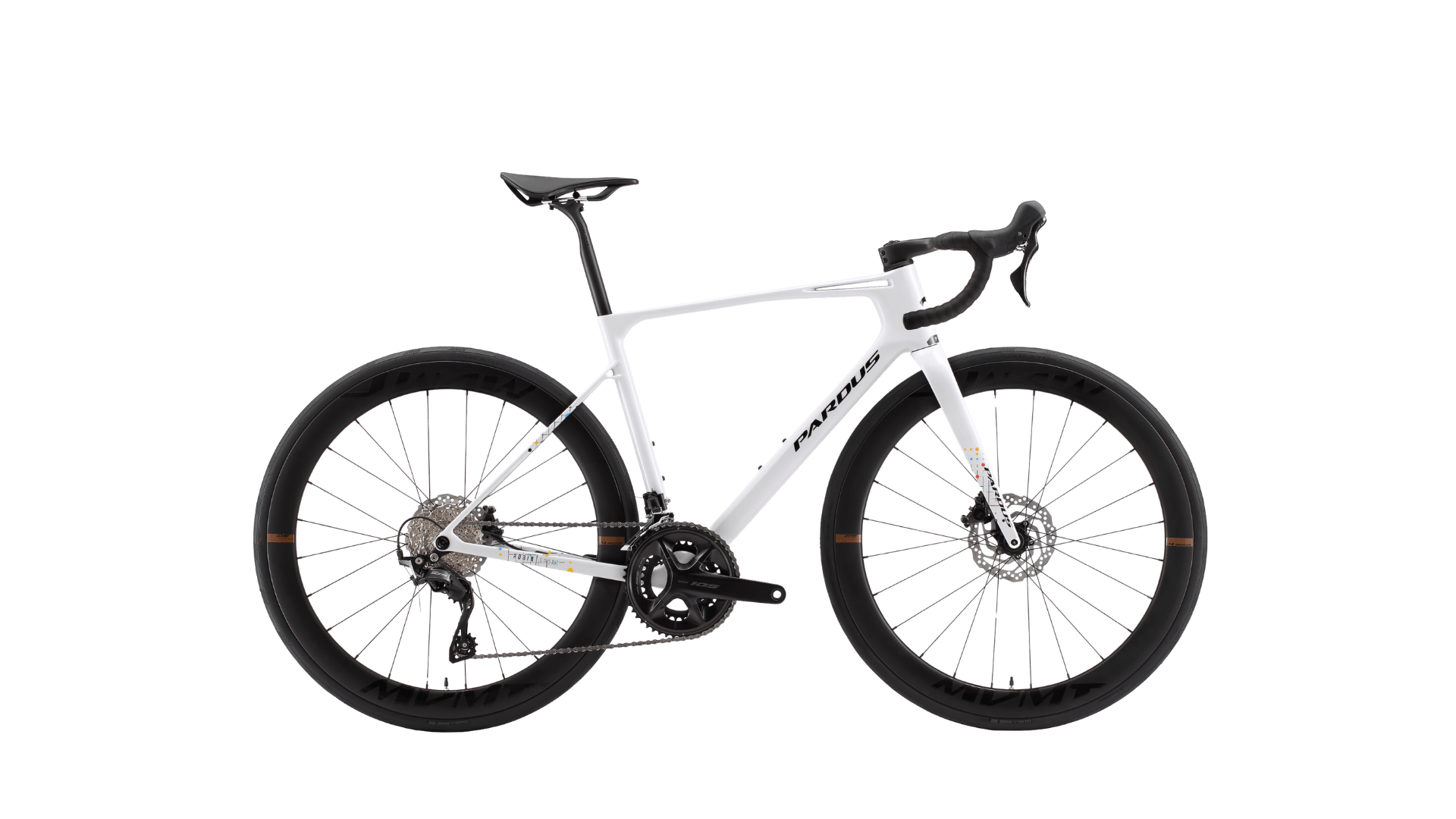

Robin Sport
The ultimate all-rounder: designed to dominate every route with the new AllRoad concept.
Style and reliability: the perfect balance between vibration absorption and stiffness.
Constant safety: a comfortable riding experience on any terrain.
Sizes
XXS
XS
S
M
L
XL
| | ROBIN SPORT - SHIMANO 105 Di2 |
| FRAME | ROBIN SPORT, Carbon, all road 12×142mm thru axle |
| FORK | ROBIN SPORT, Carbon, 12×100mm thru axle |
| LEVERS | Shimano 105 Di2 12 speed |
| FRONT DERAILLEUR | Shimano 105 Di2 2×12 speed |
| REAR DERAILLEUR | Shimano 105 Di2 Max 34T |
| CRANKSET | Shimano 105 50-34T |
| CASSETTE | Shimano 105, 11-34T, 12 speed |
| CHAIN | Shimano QUICK-LINK |
| BRAKES | Shimano 105 Hydraulic Disc Brake |
| ROTORS | Shimano, Center Lock, F160mm, R140mm |
| FRONT WHEEL | MVMT BRONZE50 Carbon, Tubeless Ready, H50, C23, 100x12mm thru axle |
| REAR WHEEL | MVMT BRONZE50 Carbon, Tubeless Ready, H50, C23, 142x12mm thru axle |
| TIRES | Continental GrandPrix |
| HANDLEBAR | MVMT M-SILVER Carbon, Integrated Handlebar |
| STEM | ------ |
| SEATPOST | Carbon, -15mm offset |
| SADDLE | Selle Italia Model X |
| | SIZE | XXS | XS | S | M | L | XL |
| Standover | 731 | 744 | 761 | 777 | 798 | 824 | |
| Q7 | Seat tube angle | 71 | 71,5° | 72,5° | 72,5° | 73° | 73° |
| N | Top tube length | 495 | 511 | 528 | 543 | 566 | 592 |
| Q1 | Head tube angle | 75 | 74,5° | 74° | 74° | 73,5° | 73° |
| F | Fork offset | 54 | 54 | 48 | 48 | 48 | 48 |
| L | Head tube length | 112 | 122 | 132 | 147 | 167 | 193 |
| H | BB drop | 72 | 72 | 70 | 70 | 70 | 70 |
| G | Fork length | 370 | 370 | 370 | 370 | 370 | 370 |
| RC | Chainstay length | 420 | 420 | 420 | 420 | 420 | 420 |
| FC | Front center | 571 | 578 | 576 | 591 | 604 | 625 |
| Stack | 511 | 522 | 535 | 550 | 570 | 595 | |
| Reach | 358 | 366 | 375 | 385 | 397 | 410 | |
| Stack/Reach ratio | 1,43 | 1,43 | 1,43 | 1,43 | 1,44 | 1,45 | |
| WB | Wheelbase | 974 | 981 | 986 | 1000 | 1014 | 1035 |
| ST | Seat tube length | 440 | 454 | 469 | 485 | 505 | 535 |
| TRAIL | 62,5 | 59 | 59 | 59 | 56 | 56 |
