E-Cyclone
For versatile trail performance.
Designed for smooth handling and responsive control.
Ideal for trail enthusiasts and ambitious riders.
Suited for technical climbs, flowing descents, and long rides.
Sizes
S
M
L
XL
| | E-Cyclone S1 | E-Cyclone S2 | E-Cyclone S3 |
| FRAME | E-MTB CARBON | E-MTB CARBON | E-MTB CARBON |

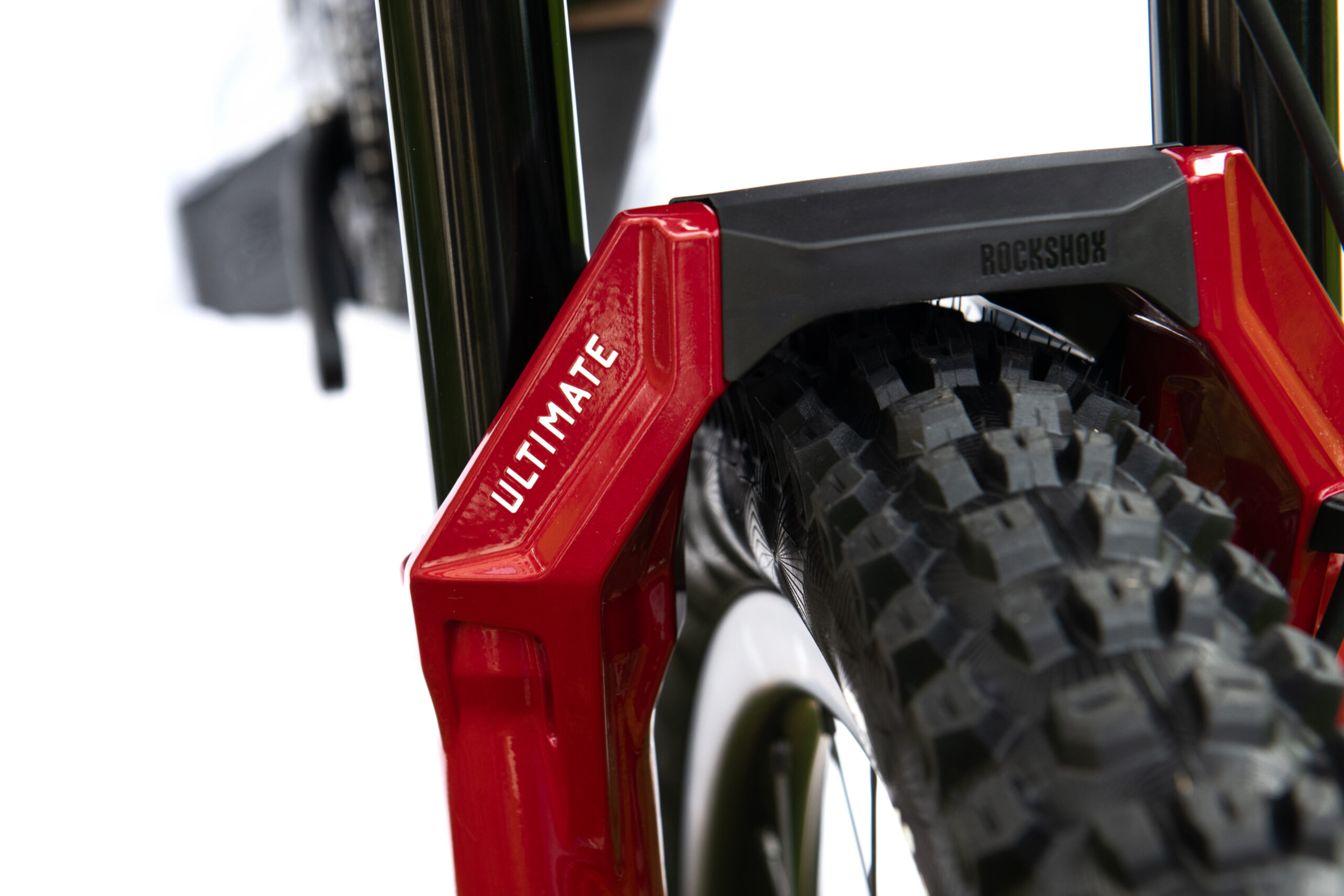

| FORK | RockShox Lyrik Ultimate, 160mm | RockShox Lyrik, 160mm | RockShox Pyslo Silver, 160mm |

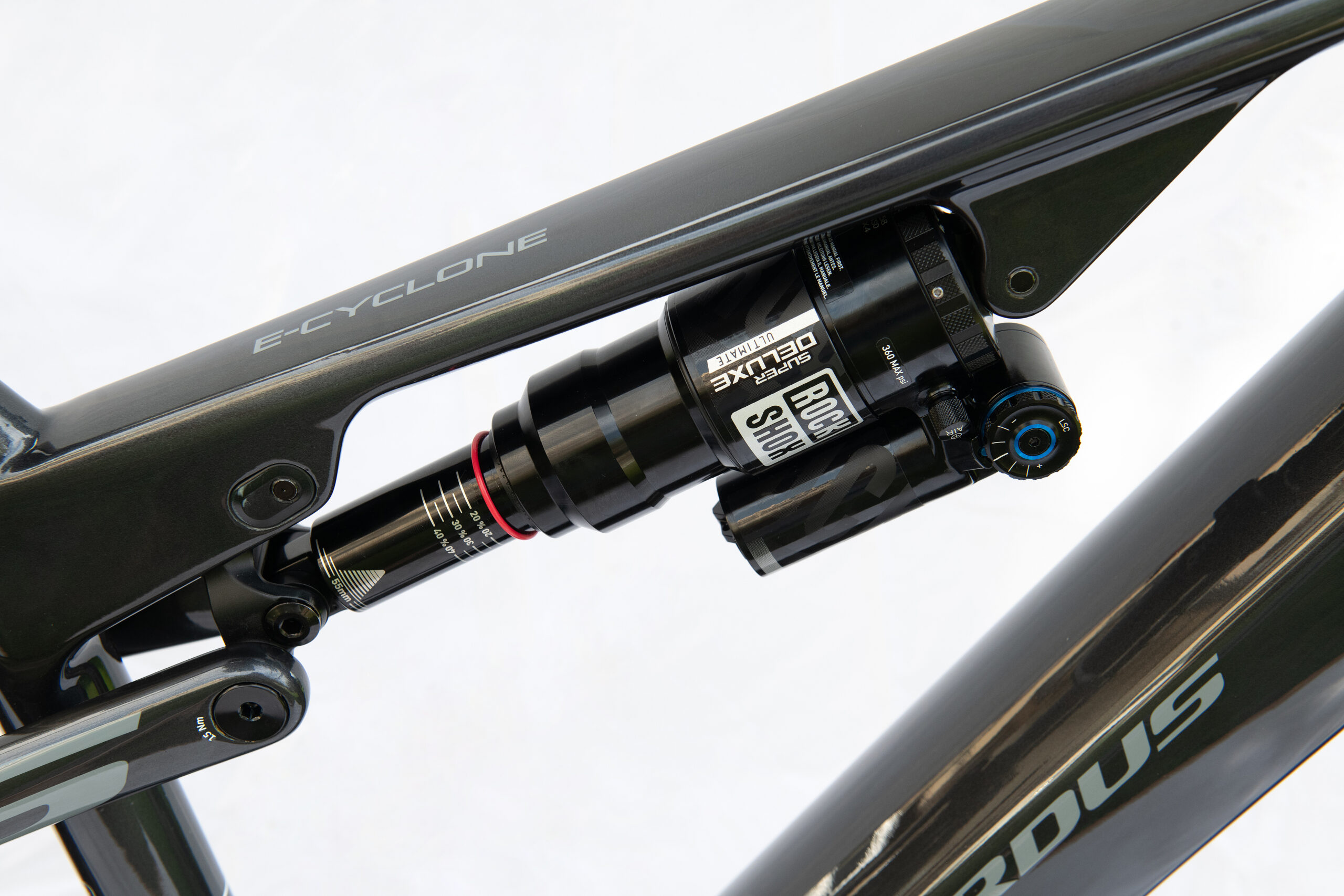

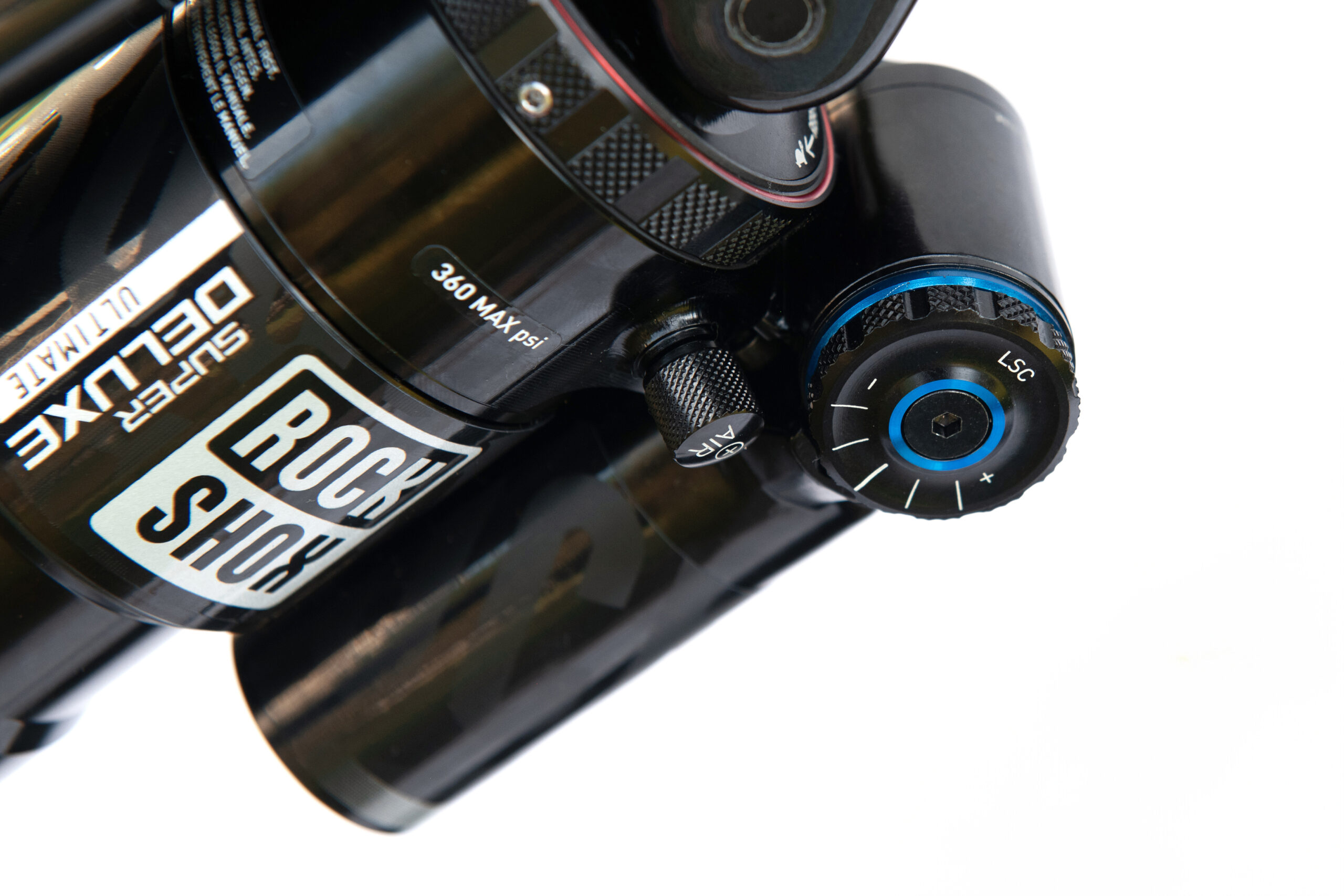

| REAR SHOCK | RockShox Super Deluxe Ultimate | RockShox Deluxe Select+ | RockShox Deluxe Select |
| SEATPOST | Pardus | Pardus | Pardus |

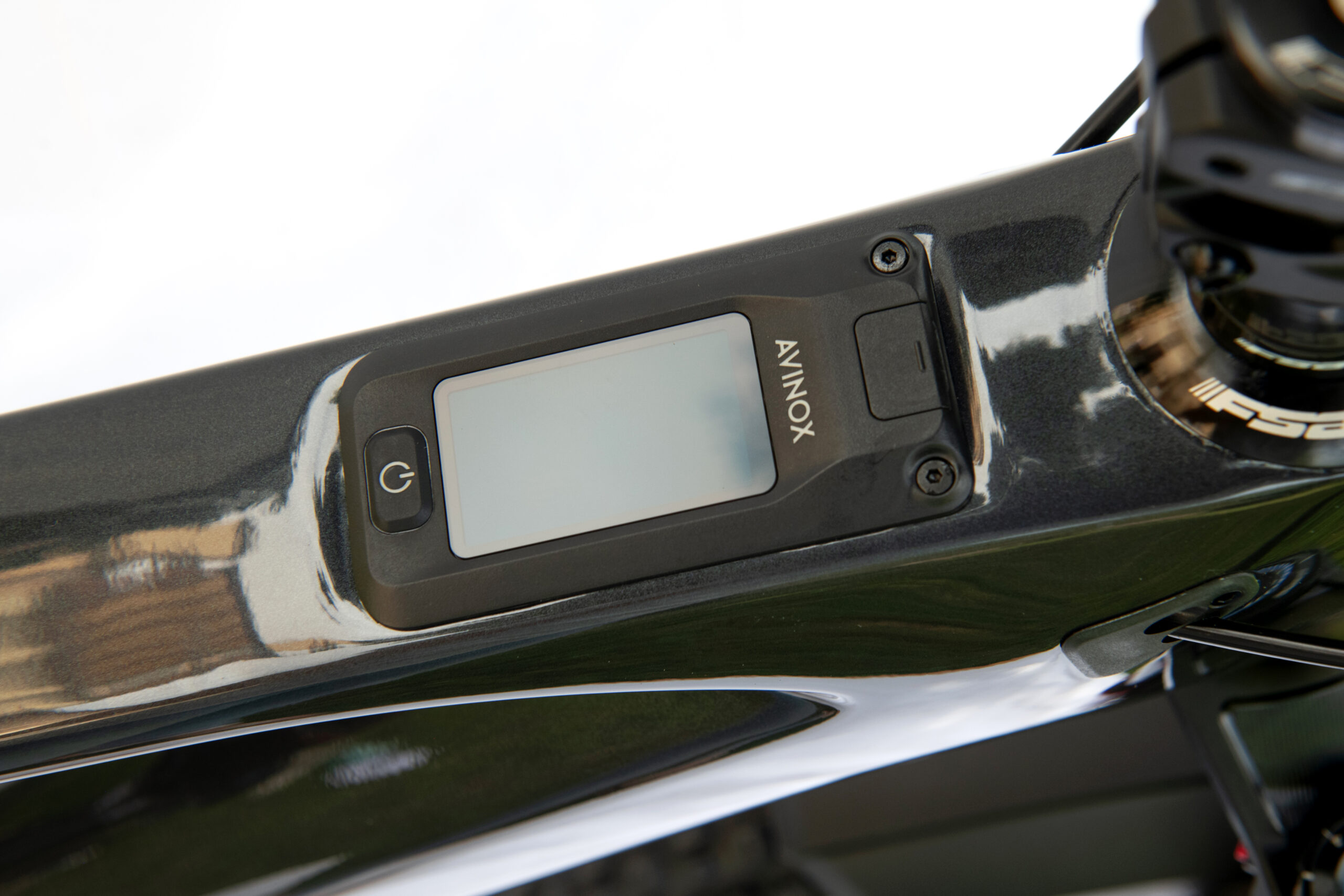

| MOTOR | Avinox M2S, 130Nm | Avinox M2S, 130Nm | Avinox M2, 110Nm |
| BATTERY | 800Wh | 800Wh | 800Wh |

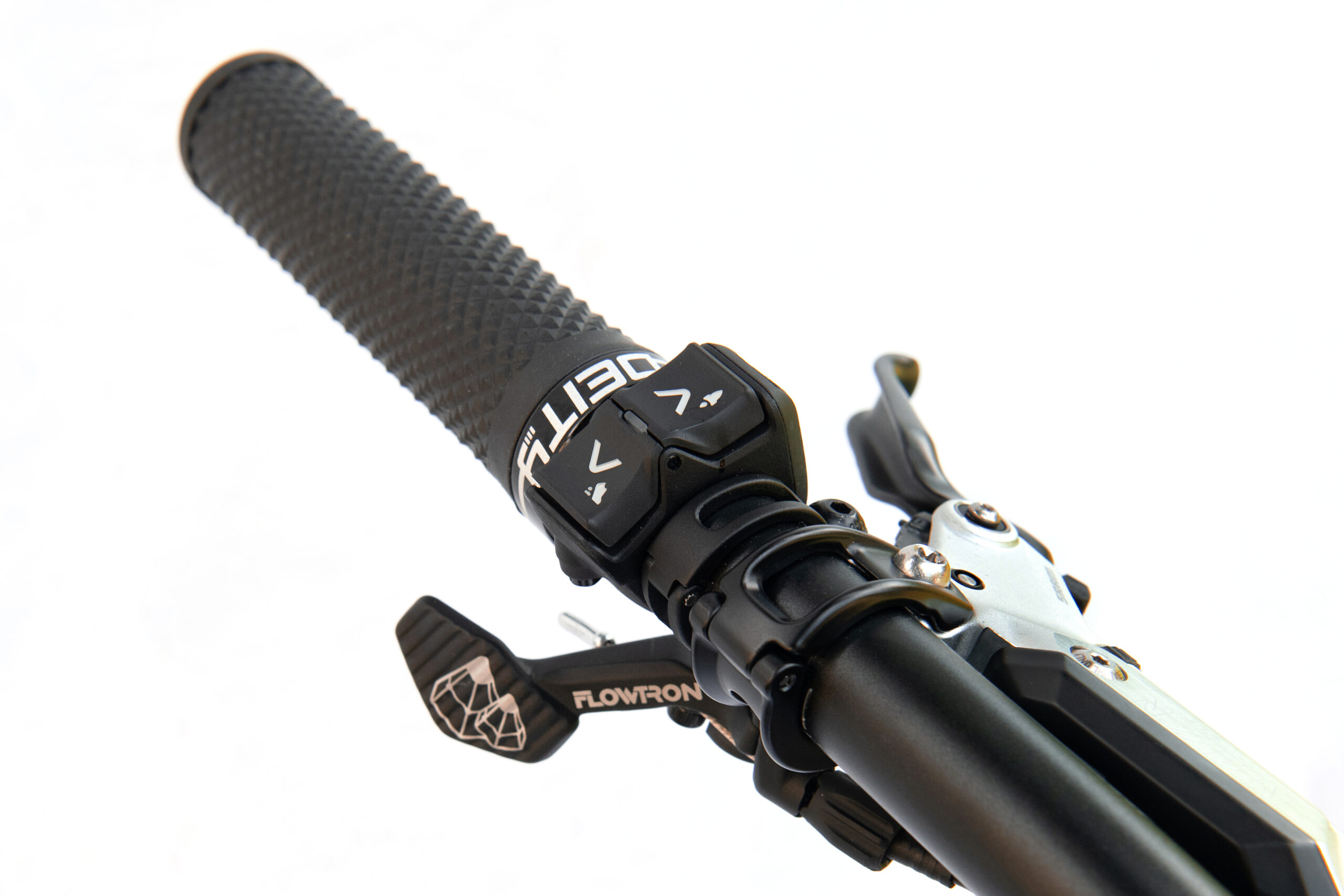

| SHIFTER | Sram POD Controller | Sram EAGLE 90 Transmission Shifter | Shimano Deore 12 speed |

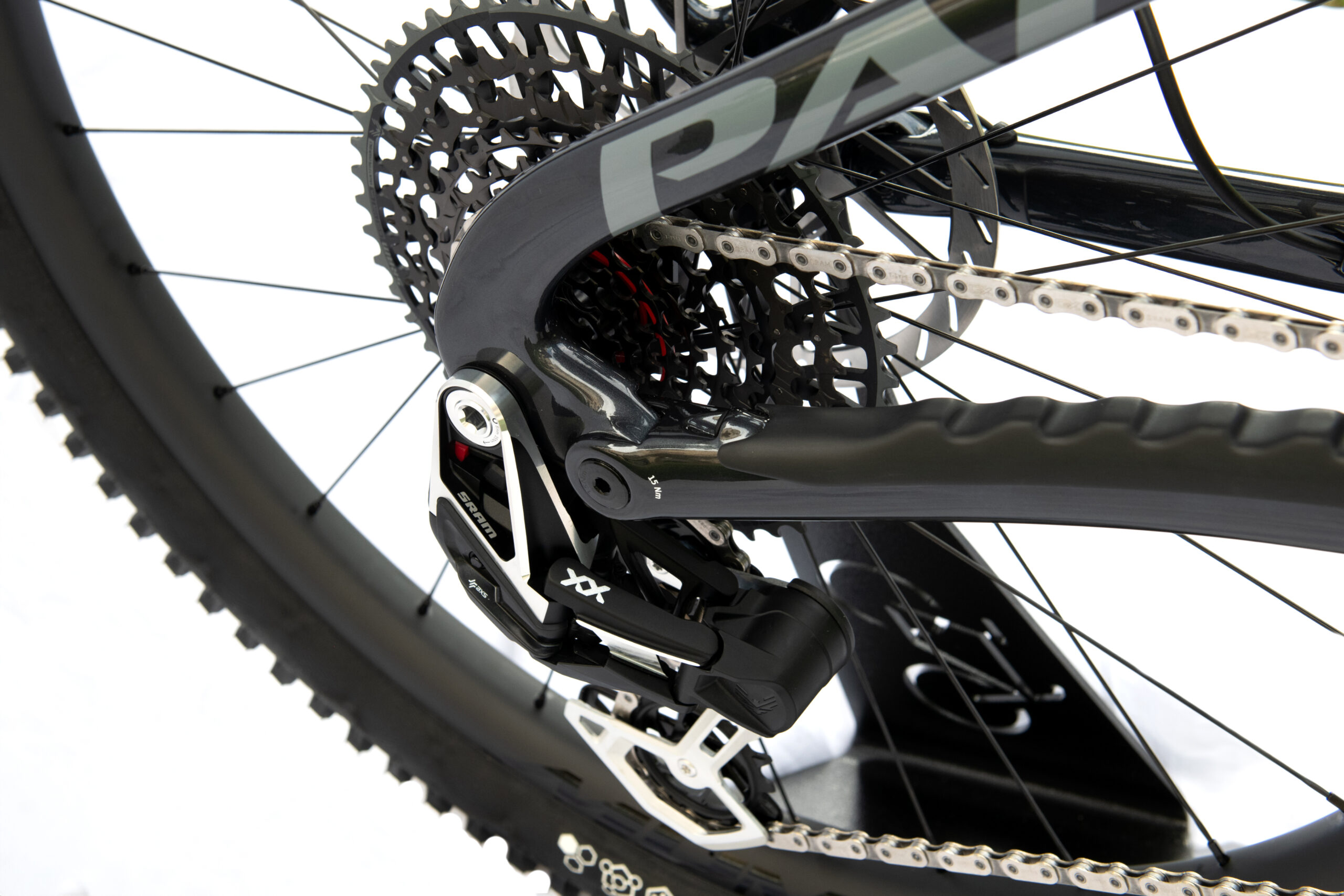

| REAR DERAILLEUR | Sram S-1000 Transmission AXS | Sram EAGLE 90 Transmission | Shimano Deore, 12 speed |
| CRANK ARMS | Fsa | Fsa | Fsa |
| CASSETTE | Sram Eagle Transmission Cassette 10-52T | Sram Eagle Transmission Cassette 10-52T | Shimano Deore, 12 speed, 10-51T |
| CHAIN | Sram GX Eagle Transmission Flattop Chain | Sram Eagle Transmission Flattop Chain | Shimano CN-M8100 QUICK-LINK |
| BRAKES | Sram Maven Ultimate | Sram Maven | Shimano Deore Hydraulic Disc Brake |
| ROTORS | Sram 6bolts, F 200mm, R 200mm | Sram 6bolts, F 200mm, R 200mm | Shimano RT66, 6bolts, F203mm, R203mm |
| WHEELS | MVMT Carbon C30 H26, Tubeless Ready | Pardus, Tubeless Ready | Pardus, Tubeless Ready |
| TIRES | Continental Kryptotal 2.6’’ | Continental Kryptotal 2.6’’ | Continental Kryptotal 2.6’’ |
| HANDLEBAR | FSA Gradient | Pardus | Pardus |
| STEM | FSA Gradient | Pardus | Pardus |
| SADDLE | SelleItalia X Bow Manganese | SelleItalia X Bow Manganese | SelleItalia X Bow |
| | S | M | L | XL | |
| Q7 | Seat tube angle effective | 76.8° | 76.8° | 76.7° | 76.6° |
| Q8 | Seat tube angle real | 71° | 71° | 71° | 71° |
| N | Top tube length | 576.2 | 601.25 | 625 | 657.7 |
| Q1 | Head tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| F | Fork offset | 44 | 44 | 44 | 44 |
| L | Head tube length | 107 | 107 | 117 | 132 |
| H | BB drop | 25 | 25 | 25 | 25 |
| G | Fork length | 570 | 570 | 570 | 570 |
| RC | Chainstay length | 445.7 | 445.7 | 445.7 | 445.7 |
| FC | Front center | 763.3 | 788.3 | 813.3 | 847.7 |
| STACK | Stack | 618 | 618 | 627 | 640.57 |
| REACH | Reach | 431.3 | 456.3 | 477 | 505 |
| WB | Wheelbase | 1227.8 | 1232.9 | 1257.8 | 1292.3 |
| ST | Seat tube length | 385 | 400 | 420 | 475 |
| TRAIL | Trail | 131.3 | 131.3 | 131.3 | 131.3 |
